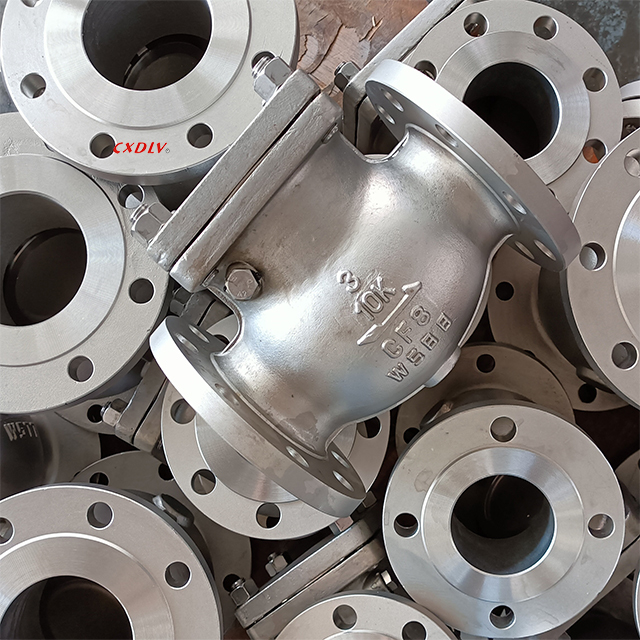

• DN80 Stainless Steel Swing Check Valve Flange End JIS10K
DN80 Stainless Steel Swing Check Valve Flange End JIS10K

DN80 Stainless Steel Swing Check Valve Flange End JIS10K

Thông tin chi tiết sản phẩm:

Nguồn gốc: Trung Quốc
Hàng hiệu: CXDLV
Chứng nhận: ISO9001:2008&PED
Số mô hình: H44W-16P

Thanh toán:

Số lượng đặt hàng tối thiểu: 1 mảnh
Giá bán: Có thể đàm phán
chi tiết đóng gói: Các trường hợp polywood phù hợp theo cấu trúc van khác nhau
Thời gian giao hàng: 7-30 ngày
Điều khoản thanh toán: L/C, T/T, Liên minh phương Tây
Giá tốt nhất Tiếp xúc

Thông tin chi tiết

Vật liệu đĩa: CF8M/CF8/CF3/CF3M/WCB Nhiệt độ: Nhiệt độ bình thường
Kích cỡ: 2 "~ 14" Sự liên quan: Mặt bích đến mặt bích
Vòng ngồi: PTFE/PPL Vật liệu cơ thể: CF8M/CF8/CF3/CF3M/WCB
Áp lực: PN16, PN40, PN25, JIS10K, ANSI150LB, ANSI300LB
Làm nổi bật:

JIS10K Swing Check Valve

,

Flange End Swing Check Valve

Mô tả sản phẩm

                                                                  DN80 Stainless Steel Swing Check Valve Flange End JIS10K

 Specifications

- Design Standard: ASME B16.34, API6D

Wall thickness:  ASME B16.34.
- Face to Face: ASME B16.10, API6D,JIS10K
- End Flange: ANSI/ASME B16.5,JIS B2212
- Inspection and Test: API598, API6D

 Application
         Check valves are mechanical devices that permit liquids and gases to flow in only one direction, preventing flow from reversing. They are classified as one-way directional valves meaning they have two openings in the body, one for fluid to enter and the other for fluid to leave. Fluid flow in the desired direction opens the valve, while backflow forces the valve closed.
DN80 Stainless Steel Swing Check Valve Flange End JIS10K 0

SIZE d L H D C G T N-ΦM
1" 25 127 64 108 79.5 51 11.1 4-16
1 1/4" 32 140 68 117 89.5 64 12.7 4-16
1 1/2" 40 165 75 127 98.5 73 14.3 4-16
2" 50 203 98 152 120.5 92 15.9 4-19
2 1/2" 65 216 112 178 139.5 105 17.5 4-19


 Feature


1. The swing-type stop valve has a spherical connection structure at the connection between the rocker arm and the valve flap, so that the valve flap has a certain degree of freedom in the range of 360 ° C, and has appropriate micro-position compensation.
2. The sealing surface of the rotary check valve sealing pair is made of alloyed steel (13Cr) or cemented carbide Stellite6, which is used in fine-grained media and does not wear quickly due to erosion.


 Package&Delivery

Packing Details: We choose suitable wood cases according to different valves and arrange skilled workers to pack in case of bruise. Long term cooperated forwarder will book space, clear customs and transport for us without delay. There are three ways for transportation, by sea, by air and by train. We will arrange transportation according to customers' needs.
Delivery Details: according to the order, 7~60days

 FAQ

Q: Are you trading company or manufacturer ?
A: We are a manufacturer for more than 16years.
Q: How long is your delivery time?
A: According to the order,7~60days.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free, but the courier charge is accounting on buyers.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.





DN80 Stainless Steel Swing Check Valve Flange End JIS10K 1DN80 Stainless Steel Swing Check Valve Flange End JIS10K 2


Muốn biết thêm chi tiết về sản phẩm này
DN80 Stainless Steel Swing Check Valve Flange End JIS10K bạn có thể gửi cho tôi thêm chi tiết như loại, kích thước, số lượng, chất liệu, v.v.

Chờ hồi âm của bạn.
