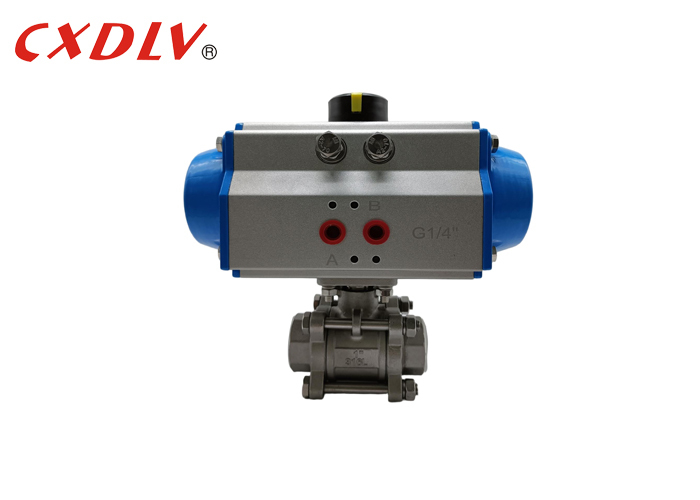

Convenient Monitoring Pneumatic Actuated Ball Valve for Seamless Integration with Limit Switch Box
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | CXDLV |
| Chứng nhận: | CE&ISO |
| Số mô hình: | Q611F |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1pc |
|---|---|
| Giá bán: | Có thể đàm phán |
| chi tiết đóng gói: | Các vỏ gỗ dán phù hợp theo cấu trúc van khác nhau |
| Thời gian giao hàng: | 5 ~ 25 ngày làm việc |
| Điều khoản thanh toán: | T/T, PayPal, Liên minh phương Tây, D/A, L/C, D/P, Moneygram |
| Khả năng cung cấp: | 500pcs/mon |
|
Thông tin chi tiết |
|||
| Vật liệu cơ thể: | CF8, CF8M, WCB, CF3, CF3M | Vật liệu chỗ ngồi: | PTFE |
|---|---|---|---|
| Người điều khiển: | Diễn xuất kép, diễn xuất đơn | Tiêu chuẩn: | GB,ANSI,JIS,DIN |
| Kích cỡ: | 1/2 "~ 8" | Trung bình: | Khí nước |
Mô tả sản phẩm
PN16 Pneumatic Actuated Ball Valve Double Acting Piston Double Flange Ends
Specifications
- Rack and pinion design rotary quarter turn pneumatic actuator
- Double Acting or Spring Return Version
- ISO5211, DIN3337 and Namur interfaces for easy mounting to valve, limit switch box and positioner
- Suitable for indoor and outdoor application
- Torque output from 3Nm to 13,024Nm (DA version) and 4Nm to 6,584Nm (SR version)
- Aluminium alloy housing with nickel plated pinion
- Travel angle 90° with travel stop adjustment of ± 5℃
- Operating pressure from 2 bar up to 8 bar at temperature from -20℃ to +80℃
Advantage
1. Type Three Piece : Full Bore : Pneumatically Actuated (Single or Double Acting)
2. Size & Connections 6mm (1/4″) to 100mm (4″) BSP Female (NPT, BSPT on request)
3. Duty Air : Inert Gas : Oil : Process : Steam : Water
4. Materials Stainless Steel Body, Ball & Stem : RPTFE Seat
Technical Data
Double Acting Pneumatic Actuator Ordering No.
| Model No | Torque(6Bar) | |
| Open | Close | |
| ACT 050S | 13.2Nm | 6.7Nm |
| ACT 063S | 24.1Nm | 11.1Nm |
| ACT 075S | 47.7Nm | 22.1Nm |
| ACT 090S | 73.1Nm | 36.7Nm |
| ACT 100S | 109Nm | 50.7Nm |
| ACT 115S | 176Nm | 82Nm |
| ACT 125S | 227Nm | 105Nm |
| ACT 145S | 357Nm | 165Nm |
| ACT 160S | 456Nm | 224Nm |
| ACT 190S | 871Nm | 379Nm |
| ACT 210S | 1000Nm | 521Nm |
| ACT 240S | 1423Nm | 721Nm |
| ACT 270S | 2345Nm | 1060Nm |
| ACT 300S | 2956Nm | 1460Nm |
| ACT 350S | 4247Nm | 2346Nm |
| ACT 400S | 6559Nm | 2624Nm |
Accessories which can use with this Ball Valve
On/off Indicator
Namur Standard Solenoid Valve in all Standard
Pneumatic & Electric-Pneumatic Valve Positioner
Declutchable Manual Override
Limit Switches for On/Off Indication at Panel Board
Filter + Regulator Combination with Pressure Gauge
Model Selection
3PC Thread Pneumatic Ball Valve
| Product Name | 3PC Thread Ball Valve | |||
| Pressure | 1000WOG | |||
| Valve Matreial | CF8/SS304 | CF8M/SS316 | WCB | |
| Connection | BSP/BSPT/NPT | |||
