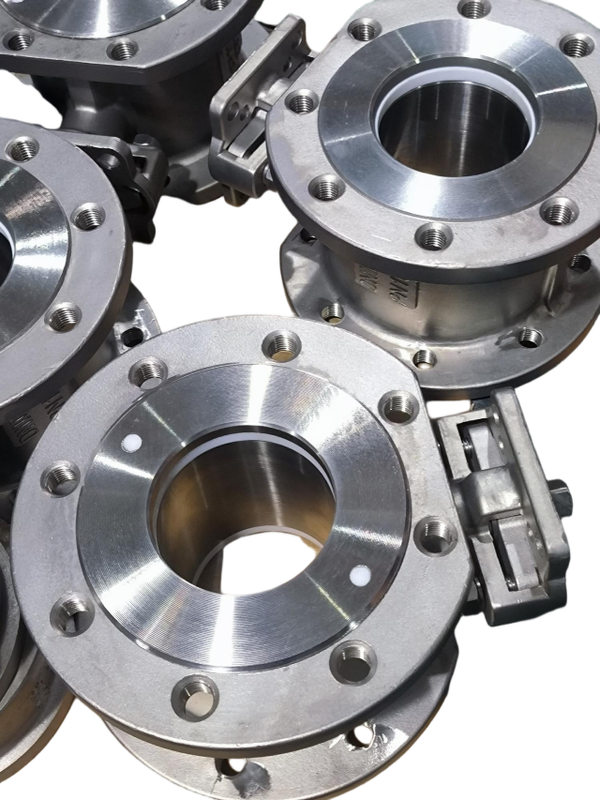

Italian Thin-Walled Wafer Ball Valve Carbon Steel WCB Quick-Change Components 2PC with ISO5211 Mounting Pad
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | CXDLV |
| Chứng nhận: | CE&ISO |
| Số mô hình: | Q71F-16C |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1 cái |
|---|---|
| Giá bán: | Có thể đàm phán |
| chi tiết đóng gói: | Các vỏ gỗ dán phù hợp theo cấu trúc van khác nhau |
| Thời gian giao hàng: | 5 ~ 25 ngày làm việc |
| Điều khoản thanh toán: | T/T, PayPal, Liên minh phương Tây, D/A, L/C, D/P, Moneygram |
| Khả năng cung cấp: | 500pcs/mon |
|
Thông tin chi tiết |
|||
| Sự liên quan: | bánh xốp | Hoạt động: | Xử lý |
|---|---|---|---|
| Áp lực: | PN16/PN25 | Tên sản phẩm: | Van bi 1 cái |
| Vật liệu van: | WCB thép cacbon | Người mẫu: | Q71F-16C |
| Phạm vi kích thước: | DN15~DN200 | Nhiệt độ: | -20°C~350°C |
| Làm nổi bật: | Carbon Steel WCB Wafer Valve,Quick-Change Thin-Walled Ball Valve,ISO5211 Direct Mount Italian Design |
||
Mô tả sản phẩm
Italian thin-walled wafer ball valve with quick-change components - carbon steel WCB ball valve
General Features
Italy Ball Valve
Applicable Standards:
- Design and Manufacturing : GB / T12237 / 1989
- Connection : JB / T79
- Fireproof Test: GB / T13927 - 1992
Size Range:
- DN15 ~ DN200
Nominal Pressure:
- Contruction 1.6 ~ 4.0 MPa
Temperature Limit:
- 20 °C ~ 350 °C
Wafer Type ball valves (or called “Italy Super Thin” Type ball valves) are used in the pipeline equipment in the condition of PN1.0~2.5MPa, working temperature of 29~180℃(sealing ring is RPTFE) or 29~180℃(sealing ring is PPL Polyphenylene), to achieve to cut off or connect the medium in the pipeline. The applicable medium, such as water, steamer, oil, Nitric Acid, Acetic Acid, Carbamide, or medium of oxidizability can be applied subject to difference valve material adopted.
| Unit:mm | |||||
| Pressure | Size | L | D | D1 | D2 |
| PN16 | 15 | 35 | 95 | 65 | 45 |
| 20 | 38 | 105 | 75 | 55 | |
| 25 | 42 | 115 | 85 | 65 | |
| 32 | 50 | 135 | 100 | 78 | |
| 40 | 62 | 145 | 110 | 85 | |
| 50 | 72 | 160 | 125 | 100 | |
| 65 | 95 | 180 | 140 | 120 | |
| 80 | 118 | 195 | 160 | 135 | |
| 100 | 140 | 215 | 180 | 155 | |
| 125 | 195 | 245 | 210 | 185 | |
| 150 | 225 | 280 | 240 | 210 | |
| 200 | 275 | 335 | 295 | 265 | |
Application
Wafer Ball Valve can be widely used in petroleum, chemical, metallurgy, power station, light industry and other fields to automatically adjust or cut off oil, water, gas and pulp or fibrous fluid.
Strength
1. Blow out proof stem design
2. Full port design
3. ISO5211 direct mounting pad
4. Flange Standard:GB
5. Various sealing materials and carbon steel options
6. Wafer ball valve structure simple, small size, light weight.
Model Selection
Wafer ball valve
| Model No | Working Pressure /Mpa |
Applicable Temperature /℃ |
Applicable Medium |
| Q71F-16C | 1.6 | PTFE≤150 PPL≤250 |
Water Oil Gas |
| Q71F-25C | 2.5 | Water Oil Gas | |
